Carbon Steel Zinc Plated Wedge Anchor with Three Points Clip
  • Air ProCarbon Steel Zinc Plated Wedge Anchor with Three Points Clip
  • Air ProCarbon Steel Zinc Plated Wedge Anchor with Three Points Clip

Carbon Steel Zinc Plated Wedge Anchor with Three Points Clip

Carbon Steel Zinc Plated Wedge Anchor with Three Points Clip
Moq: 3000pcs per size
Lead Time: 30-45 Days after order Confirmed.
Package Details: Bulk, Plastic bag, Small box in Carton with Label
Payment Terms: T/T, L/C AT Sight
Sample Terms: Samples free of charge, Freight to be collected

Send Inquiry

Product Description

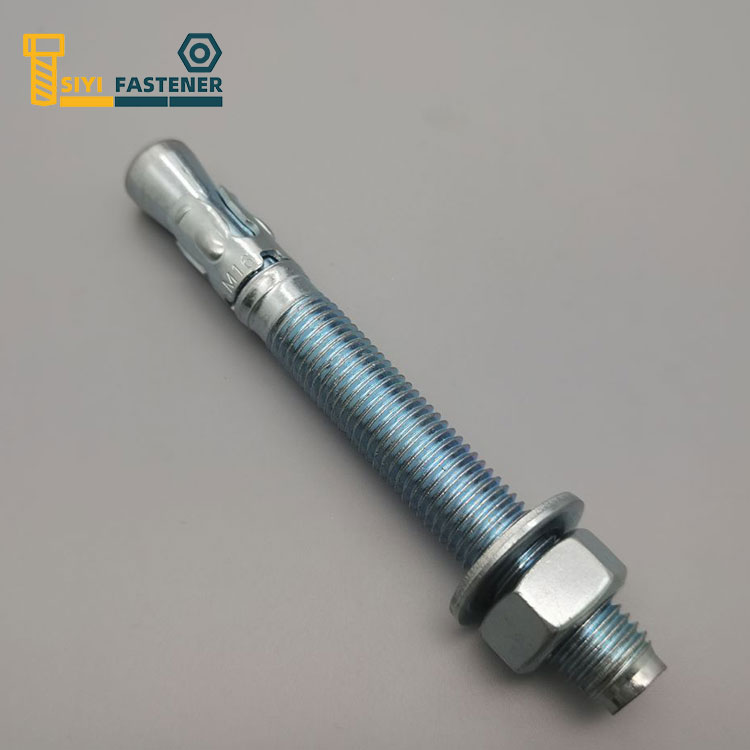

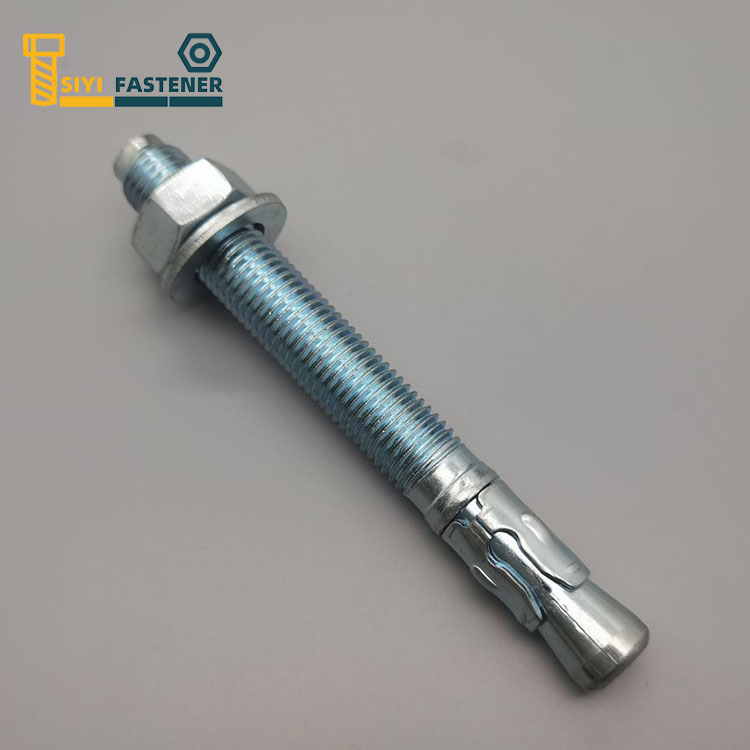

Carbon Steel Zinc Plated Wedge Anchor with Three Points Clip


1. Carbon Steel Zinc Plated Wedge Anchor with Three Points Clip Description:

The wedge anchors (also called heavy duty concrete anchor) are used to anchor fixtures on to concrete. The wedge anchors are inserted into a pre-drilled hole and then expanded, causing them to wedge securely in the concrete. The concrete wedge anchor is available in zinc plate steel, hot-dipped galvanized and stainless steel.


Other Used Names

Wedge anchor, stud wedge anchors, stud anchor system, heavy duty concrete anchors, Through bolt anchor.





2. Main Features:

Category

Wedge anchor

Material

Carbon steel, Stainless steel

Thread Type

Metric, American, Unified

Surface treatment

Zinc Plated, Hot Dip Glavanized, Acid cleaning

Appearance

Three Points, Double Clips, Stainless Steel Clip, Round Clip, Hilti Clip


3. Carbon Steel Zinc Plated Wedge Anchor with Three Points Clip Parameters:

Wedge Anchors Size

Max. Fixture Thickness (mm)

Pull out Load (Kgs)

M6X40

3

850

M6X55

15

M6X70

30

M6X95

55

M8X50

10

1150

M8X65

20

M8X80

35

M8X95

50

M8X105

60

M8X120

75

M8X165

135

M10X65

15

1500

M10X80

20

M10X95

35

M10X115

55

M10X130

70

M12X80

20

2300

M12X100

30

M12X110

40

M12X120

50

M12X150

80

M16X105

15

3400

M16X140

40

M16X180

80

M16X220

120

M20X125

15

5400

M20X160

40

M20X200

80

M20X300

180



Wedge Anchors Size

Max. Fixture Thickness (mm)

Pull Out Load (Kgs)

1/4X1-3/4

3/16"

830

1/4X2-1/4

5/8"

3/8X2-1/4

1/8"

1500

3/8X2-3/4

1/2"

3/8X3

3/4"

3/8X3-1/2

1-1/4"

3/8X3-3/4

1-1/2"

3/8X5

2-3/4"

1/2X2-3/4

1/8"

2800

1/2X3-3/4

7/8"

1/2X4-1/4

1-1/2"

1/2X5-1/2

2-1/2"

1/2X7

4"

5/8X3-1/2

3/16"

3600

5/8X4-1/2

1-1/8"

5/8X5

1-1/2"

5/8X6

2-1/2"

5/8X7

3-1/2"

5/8X8-1/2

5"

3/4X4-1/4

1/2"

5500

3/4X4-3/4

3/4"

3/4X5-1/2

1-1/2"

3/4X7

3"

3/4X8-1/2

4-1/2"

3/4X10

6"


If the product is non standard and need customized, please contact us for more details.


4.FAQ:

1.Can I transfer the money to you then you pay to other supplier?
As your convinence.

2.Can I delivery the goods from other supplier to your factory? Then load together?
Yes, we offer extra service for all our customers.

3.Will you will attend the fair to show your products?
Of course, we attend fairs in Shanghai, Guangzhou and oversea.

4.Can you send your equipment to my warehouse in China?
Yes.

5.What is your products standardization?
ANSI, BSI, ISO, DIN, GB.

6.How do you pack the Products?
Carton box, Nylon bag, or accroding to your request.

7.Can you can design the products according to our size?
Of course, we offer ODM service for all anchor products.

8.How many years have your company made this kind of products?
Over 15 years.

9.Which certificate do you have for your Factory or Products?
We have ISO certification for the factory and CE for the products.

10.How many staffs do you have in your factory?
50.

11.Do you have any agent in our country?
None at this time,but will consider to have in the future.

12.How far is your factory from the city hotel?
20 KM.

13.How far is your factory from the airport?
1 hour from Ningbo and 2 hours from Hangzhou and Shanghai.

14.How long it will take from guangzhou to your factory?
6 Hours.

15.Where is your factory located?
In Cixi, Ningbo City, Zhejiang Province,China.

16.What is the Application for your products?
Construction, Machine.

17.If OEM is acceptable?
Yes, we offer both OEM & ODM service.

18.Do you provide sample? Free or charge?
Of course, if the samples is regular. Samples free of charge and the buyer should pay the freight.
If special samples, it will accroding to the real situation.

19.What is your term of payment?
We accept T/T, L/C, D/P & OA, of course the price will different under different payment terms.

20.What is your MOQ?
1000pcs for large size, 3000pcs for small size.

21.Are you a trading company or a manufacturer?
Manufacturer.

22.How long is your delivery time?
30 to 45 days after order confirmed.

23.How many production lines in your factory?
4 Production lines, 2 for wedge anchors, 1 for drop in anchor and 1 for other products.
