Carbon Steel Zinc Plated Sleeve Anchor with Conical Nut and C Hook
  • Air ProCarbon Steel Zinc Plated Sleeve Anchor with Conical Nut and C Hook

Carbon Steel Zinc Plated Sleeve Anchor with Conical Nut and C Hook

Carbon Steel Zinc Plated Sleeve Anchor with Conical Nut and C Hook
Moq: 3000pcs per size
Lead Time: 30-45 Days after order Confirmed.
Package Details: Bulk, Plastic bag, Small box in Carton with Label
Payment Terms: T/T, L/C AT Sight
Sample Terms: Samples free of charge, Freight to be collected

Send Inquiry

Product Description

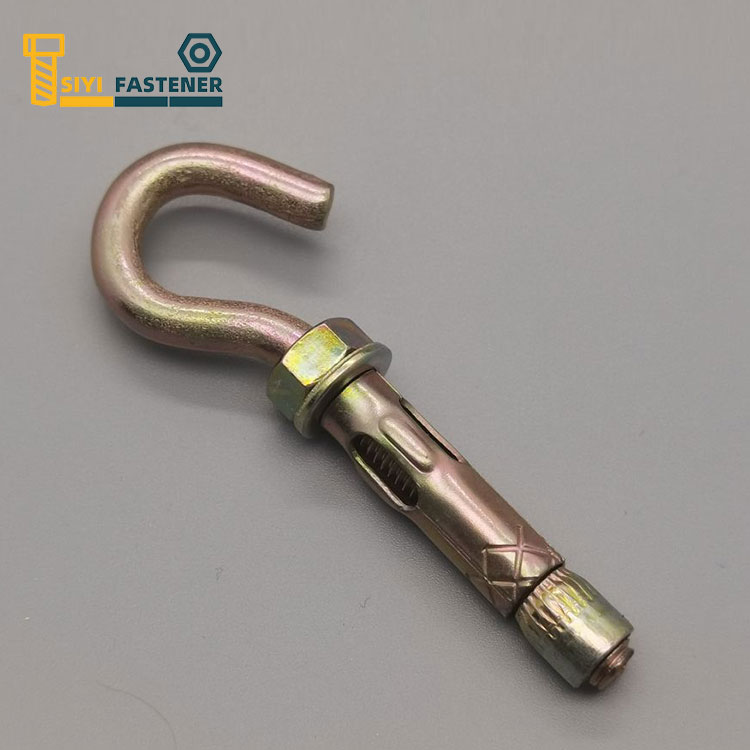

Carbon Steel Zinc Plated Sleeve Anchor with Conical Nut and C Hook



1.Carbon Steel Zinc Plated Sleeve Anchor with Conical Nut and C Hook Description:

The sleeve anchors allow it to anchor into concrete, brick and block. Sleeve anchors work when you insert it into a predrilled hole in the base material and then turn the nut to pull the working end of the sleeve anchor up through the sleeve. The anchor is then expanded and anchored securely in the concrete, brick or block. The anchors are available in zinc plated and stainless steel. Sleeve anchors come fully assembled and ready to use.


Other Used Names
Sleeve thunderbolts, bolt sleeve anchors, masonry anchors.






2.Main Features:

Category

Sleeve Anchor

Material

Carbon Steel, Stainless steel

Thread Type

Metric, American, Unified

Surface treatment

Zinc Plated, Hot Dip Glavanized, Acid cleaning

Appearance

Bolt, Hex Nut & Washer, Flange Nut, Concial Nut, O Hook, C Hook, L Type, Double Sleeve, with Wing


3.Carbon Steel Zinc Plated Sleeve Anchor with Conical Nut and C Hook Parameters:

Dia.X Length

Max. Fixture Thickness (mm)

Pull out Load (Kgs)

M6.5X18

3

800

M6.5X25

4

M6.5X36

8

M6.5X56

26

M6.5X75

45

M8X40

8

1200

M8X65

35

M8X85

55

M10X40

6

1700

M10X50

12

M10X60

15

M10X75

27

M10X100

62

M12X60

15

2500

M12X75

27

M12X100

52

M12X120

70

M12X130

80

M16X65

20

3700

M16X110

65

M16X145

100

M20X75

25

5100

M20X107

57

M20X151

101


Dia.X Length

Max. Fixture Thickness (mm)

Pull out Load (Kgs)

1/4X1-3/8

1"

1200

1/4X2-1/4

1"

1/4X3

1"

1/4X4

1"

5/16X1-1/2

1"

1700

5/16X2-1/2

1"

3/8X1-7/8

1-1/4"

2700

3/8X3

1-1/4"

3/8X4

1-1/4"

3/8X5

1-1/4"

3/8X6

1-1/4"

1/2X2-1/4

1-1/2"

4300

1/2X3

1-1/2"

1/2X4

1-1/2"

1/2X6

1-1/2"

5/8X2-1/4

2"

6100

5/8X3

2"

5/8X4-1/4

2"

5/8X5-3/4

2"

5/8X6

2"

3/4X2-1/2

2"

7800

3/4X4-1/4

2"

3/4X5-1/2

2"

3/4X6-1/4

2"


If the product is non standard and need customized, please contact us for more details.


4.FAQ:

1.Can I transfer the money to you then you pay to other supplier?
As your convinence.

2.Can I delivery the goods from other supplier to your factory? Then load together?
Yes, we offer extra service for all our customers.

3.Will you will attend the fair to show your products?
Of course, we attend fairs in Shanghai, Guangzhou and oversea.

4.Can you send your equipment to my warehouse in China?
Yes.

5.What is your products standardization?
ANSI, BSI, ISO, DIN, GB.

6.How do you pack the Products?
Carton box, Nylon bag, or accroding to your request.

7.Can you can design the products according to our size?
Of course, we offer ODM service for all anchor products.

8.How many years have your company made this kind of products?
Over 15 years.

9.Which certificate do you have for your Factory or Products?
We have ISO certification for the factory and CE for the products.

10.How many staffs do you have in your factory?
50.

11.Do you have any agent in our country?
None at this time,but will consider to have in the future.

12.How far is your factory from the city hotel?
20 KM.

13.How far is your factory from the airport?
1 hour from Ningbo and 2 hours from Hangzhou and Shanghai.

14.How long it will take from guangzhou to your factory?
6 Hours.

15.Where is your factory located?
In Cixi, Ningbo City, Zhejiang Province,China.

16.What is the Application for your products?
Construction, Machine.

17.If OEM is acceptable?
Yes, we offer both OEM & ODM service.

18.Do you provide sample? Free or charge?
Of course, if the samples is regular. Samples free of charge and the buyer should pay the freight.
If special samples, it will accroding to the real situation.

19.What is your term of payment?
We accept T/T, L/C, D/P & OA, of course the price will different under different payment terms.

20.What is your MOQ?
1000pcs for large size, 3000pcs for small size.

21.Are you a trading company or a manufacturer?
Manufacturer.

22.How long is your delivery time?
30 to 45 days after order confirmed.

23.How many production lines in your factory?
4 Production lines, 2 for wedge anchors, 1 for drop in anchor and 1 for other products.
