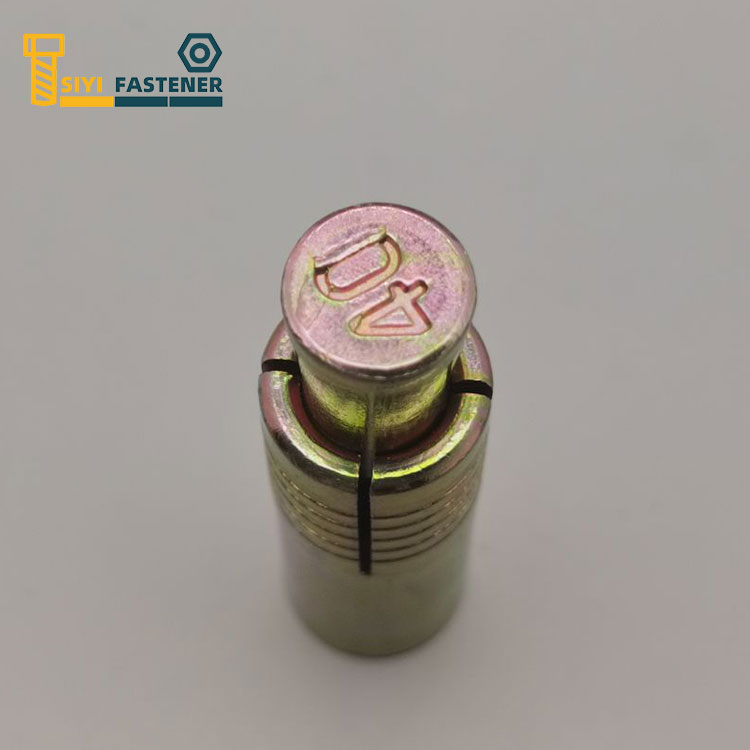

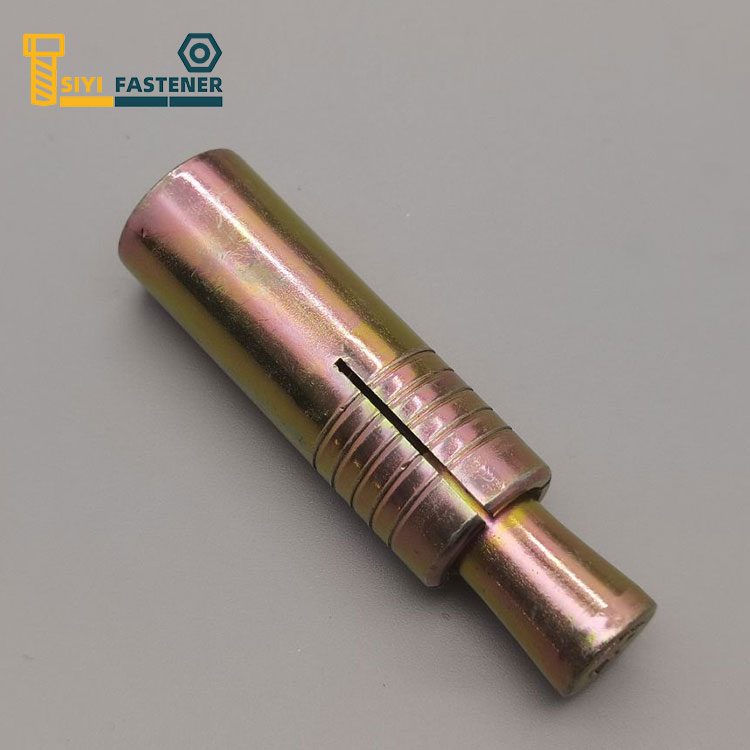

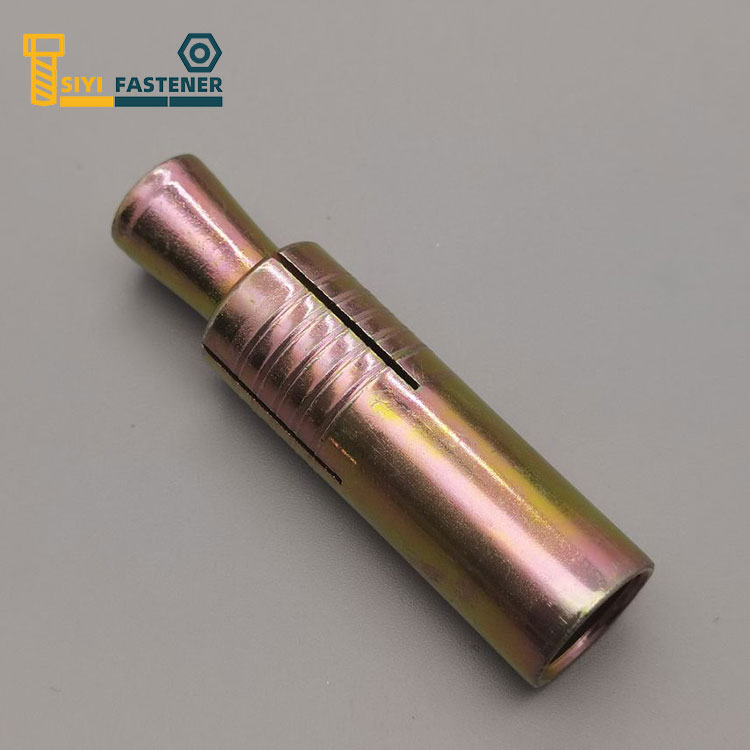

Carbon Steel Yellow Zinc Plated Cut Anchor with Ring
1.Carbon Steel Yellow Zinc Plated Cut Anchor with Ring Description:
■ Cut anchors are an improved expansion anchor with internal thread and a plug, and is the most popular anchor.
■ Anchor can be installed with hex bolt, stud and hookbolt, etc. After installation, concrete will not be effected in appearance as a rise on the surface.
■ The test values listed beneath were obtained using 200-250 kgs/cm2 concrete(no aggregate). A safe working load should not exceed 25% of stated values.
2.Main Features:
|
Category |
Cut Anchor, Strong Anchor |
|
Material |
Stainless Steel, Carbon Steel |
|
Thread Type |
Metric, American, Unified |
|
Surface treatment |
Zinc Plated, Hot Dip Glavanized, Acid cleaning |
|
Appearance |
With Knurling, Without Knurling |
3.Carbon Steel Yellow Zinc Plated Cut Anchor with Ring Parameters:
|
Cut Anchors Size (A) |
Anchor DIA.(B) |
Anchor Length
(C)
|
Thread Length
(D)
|
Bolt Thread
Fit Length
|
Drill DIA
(mm)
|
Pull out Load
(Kgs)
|
||||
|
M6 W1/4 |
11.0
(10.5)
|
30 |
9 |
8 |
11.1 |
980 |
||||
|
M8 W5/16 |
12.0 |
35 |
12 |
10 |
12.1 |
1500 |
||||
|
M10 W3/8 |
14.0 |
40 |
14 |
12 |
14.1 |
2100 |
||||
|
M12 W1/2 |
17.5 |
52 |
20 |
16 |
17.6 |
3200 |
||||
|
M16 W5/8 |
21.4 |
63 |
24 |
20 |
21.6 |
4300 |
||||
|
M20 W3/4 |
25.4 |
83 |
31 |
25 |
25.6 |
5600 |
||||
|
M22 W7/8 |
28.5 |
93 |
36 |
30 |
29.0 |
7000 |
||||
|
Cut Anchors Size (MM) |
Anchor Length |
Drill DIA(mm) |
Pull out Load (Kgs) |
|||||||
|
10.0 |
40. 45. 50
55. 60. 70
|
10.5 |
1650 |
|||||||
|
12.0 |
40. 45. 50
55. 60. 70
|
12.5 |
2450 |
|||||||
If the product is non standard and need customized, please contact us for more details.
4.FAQ:
1.Can I transfer the money to you then you pay to other supplier?
As your convinence.
2.Can I delivery the goods from other supplier to your factory? Then load together?
Yes, we offer extra service for all our customers.
3.Will you will attend the fair to show your products?
Of course, we attend fairs in Shanghai, Guangzhou and oversea.
4.Can you send your equipment to my warehouse in China?
Yes.
5.What is your products standardization?
ANSI, BSI, ISO, DIN, GB.
6.How do you pack the Products?
Carton box, Nylon bag, or accroding to your request.
7.Can you can design the products according to our size?
Of course, we offer ODM service for all anchor products.
8.How many years have your company made this kind of products?
Over 15 years.
9.Which certificate do you have for your Factory or Products?
We have ISO certification for the factory and CE for the products.
10.How many staffs do you have in your factory?
50.
11.Do you have any agent in our country?
None at this time,but will consider to have in the future.
12.How far is your factory from the city hotel?
20 KM.
13.How far is your factory from the airport?
1 hour from Ningbo and 2 hours from Hangzhou and Shanghai.
14.How long it will take from guangzhou to your factory?
6 Hours.
15.Where is your factory located?
In Cixi, Ningbo City, Zhejiang Province,China.
16.What is the Application for your products?
Construction, Machine.
17.If OEM is acceptable?
Yes, we offer both OEM & ODM service.
18.Do you provide sample? Free or charge?
Of course, if the samples is regular. Samples free of charge and the buyer should pay the freight.
If special samples, it will accroding to the real situation.
19.What is your term of payment?
We accept T/T, L/C, D/P & OA, of course the price will different under different payment terms.
20.What is your MOQ?
1000pcs for large size, 3000pcs for small size.
21.Are you a trading company or a manufacturer?
Manufacturer.
22.How long is your delivery time?
30 to 45 days after order confirmed.
23.How many production lines in your factory?
4 Production lines, 2 for wedge anchors, 1 for drop in anchor and 1 for other products.
